Price: $99.99 - $499.00
(as of Mar 22,2026 20:44:40 UTC – Details)

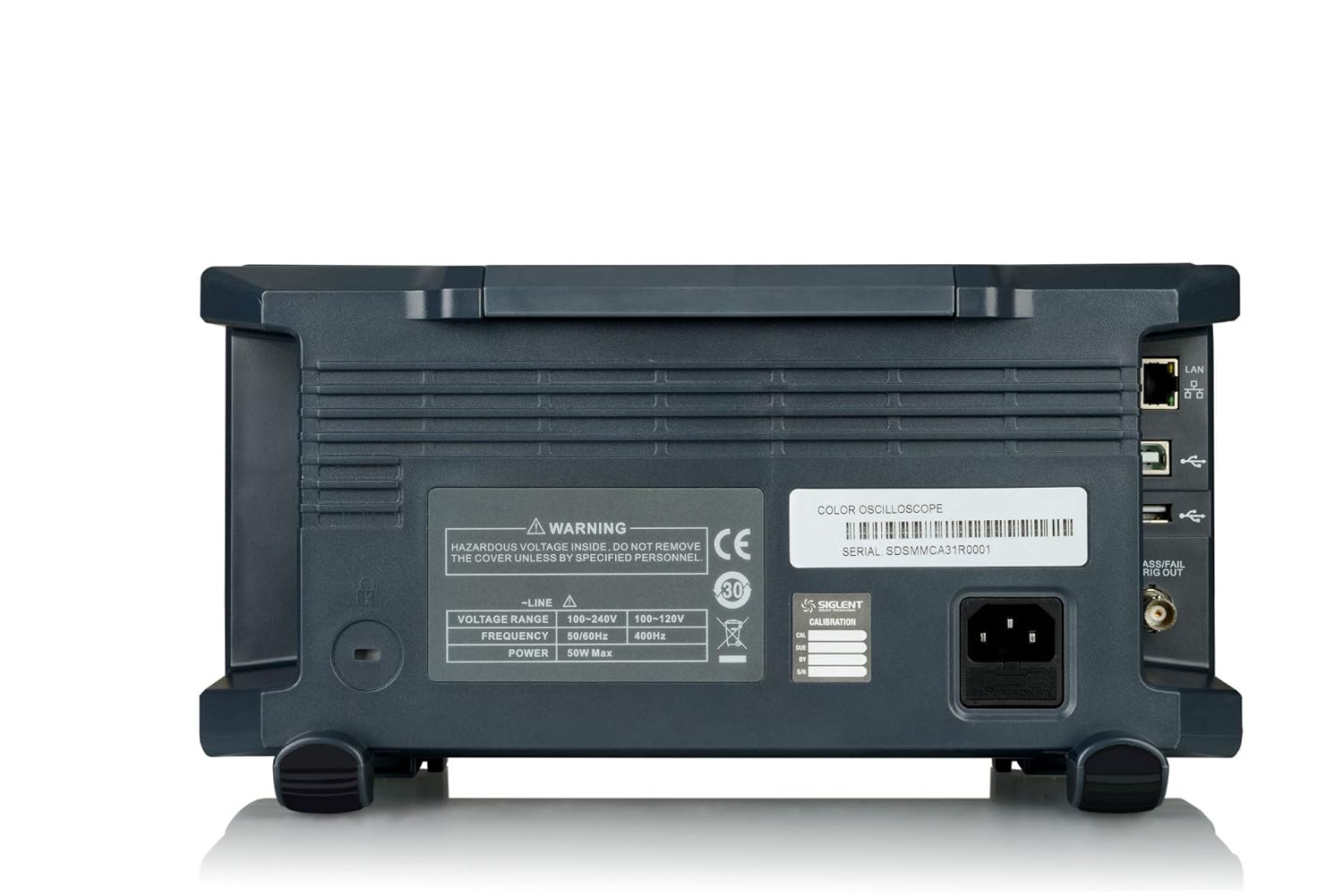

SDS1000X-E Series: Advanced Super-Phosphor Oscilloscope
The SDS1000X-E series incorporates cutting-edge SPO (Super-Phosphor Oscilloscope) technology, ensuring superior signal fidelity and outstanding performance. Its system noise is notably lower than other industry counterparts. The oscilloscope offers a minimum vertical input range of 500 uV/div and boasts an innovative digital trigger system with high sensitivity and low jitter. With a waveform capture rate of 400,000 frames/sec in sequence mode, it stands out among its peers. Furthermore, the SDS1000X-E features a 256-level intensity grading display and a unique color temperature display mode that sets it apart from competitors.
This latest offering from SIGLENT supports a variety of powerful triggering modes, including serial bus triggering. It also includes serial bus decoding for IIC, SPI, UART, CAN, and LIN bus types. The X-E models are enhanced with History waveform recording and sequential triggering, facilitating extended waveform recording and analysis. A standout feature is the new 1 million point FFT math function, providing exceptional frequency resolution for signal spectrum observation. The digital design is complemented by a hardware co-processor, ensuring quick and accurate measurements without compromising acquisition speed or front-panel responsiveness.
The SDS1000X-E’s features and performance are unmatched in its price class. The four-channel series offers additional functionalities, such as searching and navigating capabilities, on-screen Bode plots, 16 digital channels (optional), an external powered 25 MHz AWG module (optional), a USB WIFI adapter (optional), and an embedded application for remote control via a web browser.
Package Details
– **Package Weight:** 4.0 Kg
– **Standard Decoder:** IIC, SPI, UART/RS232, CAN, LIN
– **16 Digital Channels (MSO):** Four Channel Series Only, Option
– **USB AWG Module:** Four Channel Series Only, Option
Pros and Cons
Pros:
– Advanced SPO technology for superior signal fidelity
– Lower system noise compared to industry standards
– High waveform capture rate and sensitivity
– Extensive triggering and decoding capabilities
– Enhanced frequency resolution with 1 million point FFT math function
– Quick and accurate measurements with a hardware co-processor
– Remote control via a web browser
Cons:
– Some advanced features are optional and may incur additional costs
– Four-channel series features are not available in the standard model
– Requires additional setup for remote control functionality
